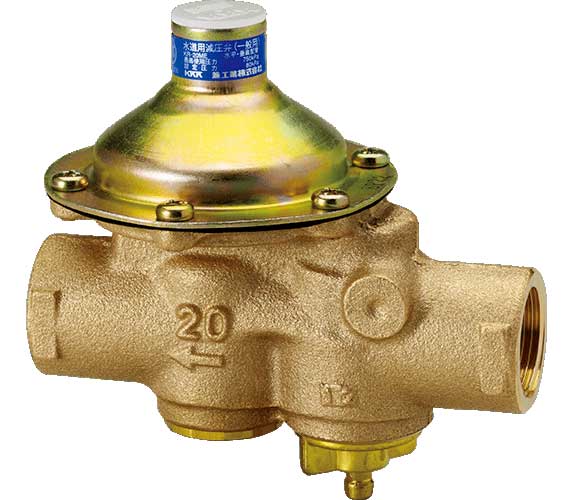

Vacuum Breaking PRV w/ Check (KRME)
Product Code: KRME
The KRME automatically reduces pressure from a higher inlet pressure to a steady lower outlet pressure by using a direct acting mechanism that responds to changes in the water supply pressure. The vacuum breaking function operates during water supply suspension. The built-in strainer prevents clogging due to sand or other foreign matter. The check function prevents backflow of outlet water.
Basic Applications:
The KRME is a direct actuated pressure reducing valve with vacuum breaking and check functions that was specially developed for water supply equipment.
Features:
- Completely Automatic
- Check Function Prevents Backflow
- Bronze Material Prevents Rust Contamination
- Simple Installation and Maintenance
- Vacuum Breaking Function
Specifications:
| Available Size: | 20mm |
| Operating Temp. Range: | KRME-H: 0 to 80°C; KRME: 0 to 60°C |
| Applicable Fluid: | Tap Water |
| Working Pressure (inlet): | Max. 1.6 MPa |
| Set Outlet Pressure: | 200kPa |
| Check Valve Closing Pressure: | Max. 3 kPa |
| Vacuum Breaking Function: | Closing: Min. 50 kPa; Opening: Min. -55 kPa |
| Flow Rate: | 40 L/min |
